Product introduction

The Yunshi large-scale membrane oxygen generator, under normal temperature and pressure, uses air as raw material and a

large-displacement air compressor as power. It takes advantage of the different permeation rates of various components in the

air when passing through the membrane. Driven by the pressure difference, it enables oxygen in the air to pass through the

membrane preferentially, thereby obtaining oxygen-rich air. By using this membrane for multiple separations, oxygen-rich air

containing over 30% oxygen can be obtained. Cooperate with smart terminals to achieve free oxygen inhalation in the living room

and bedroom.

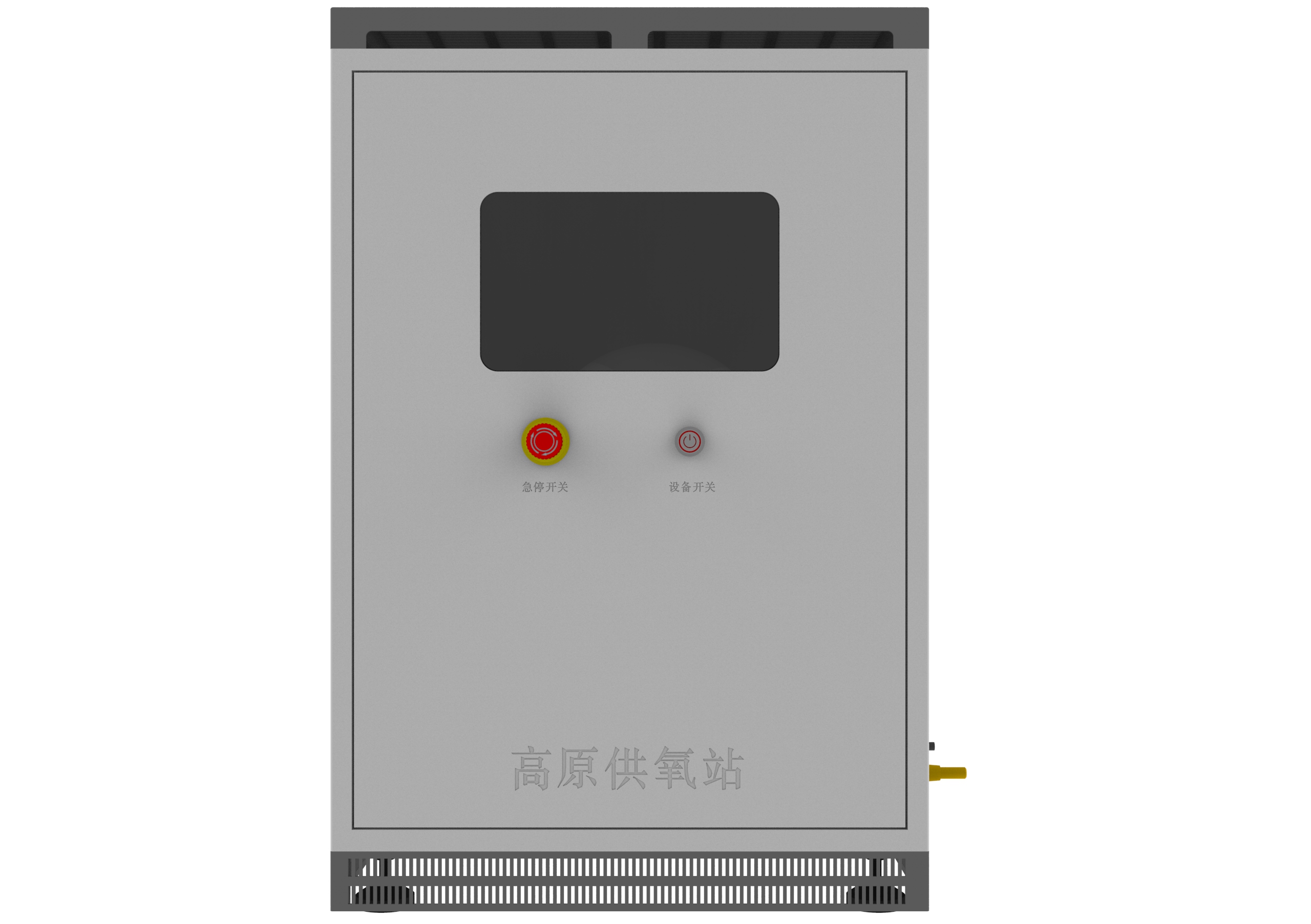

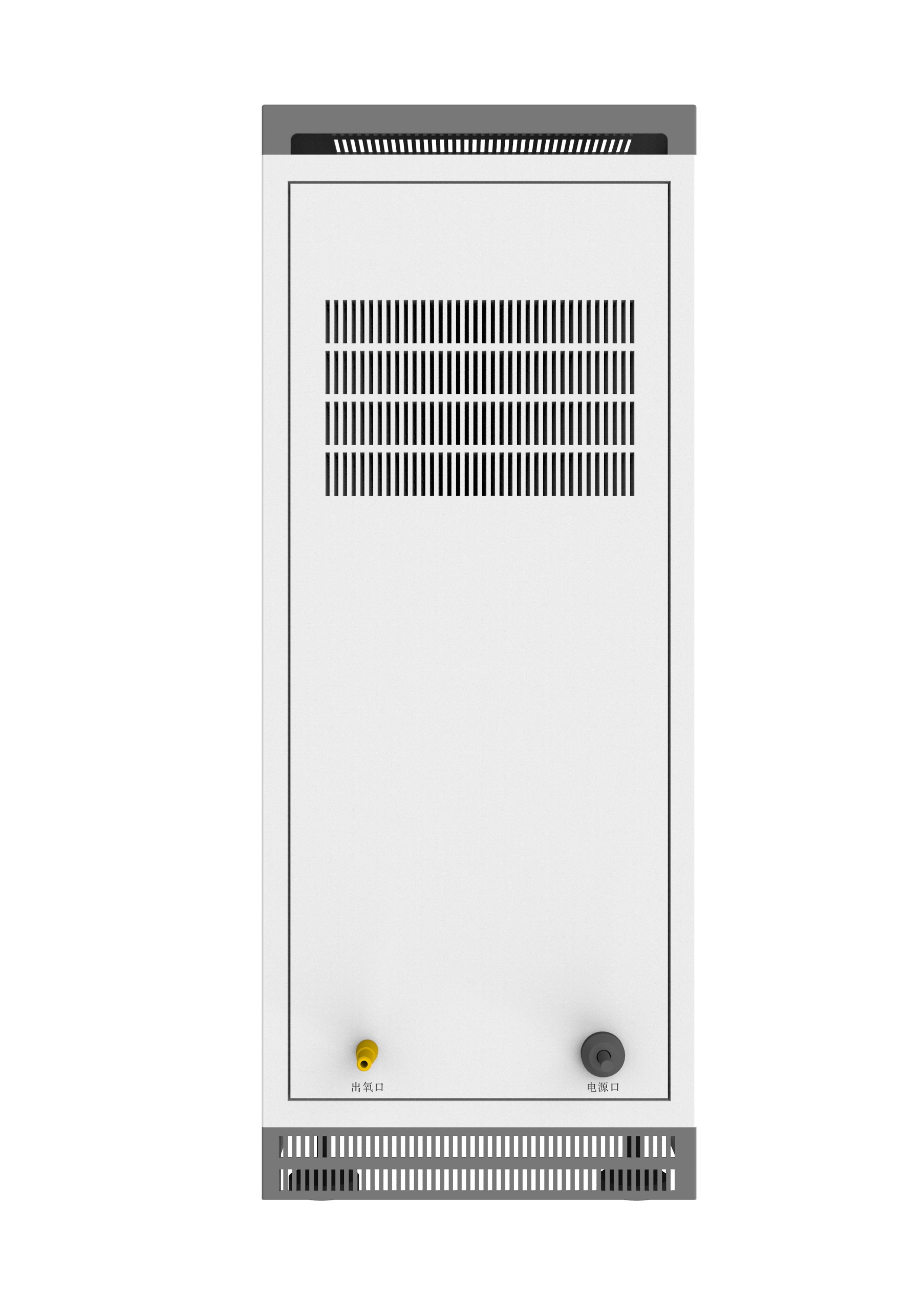

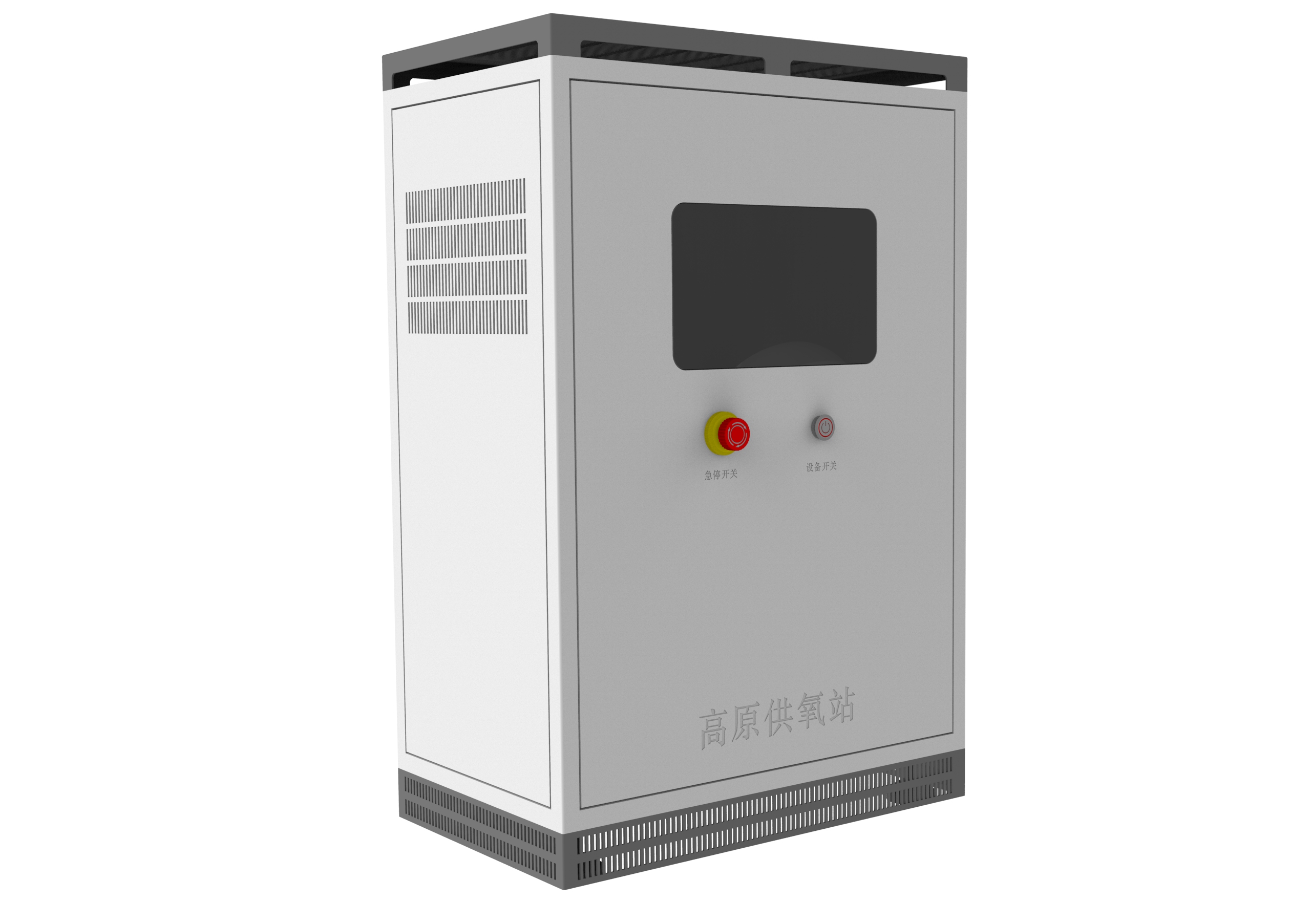

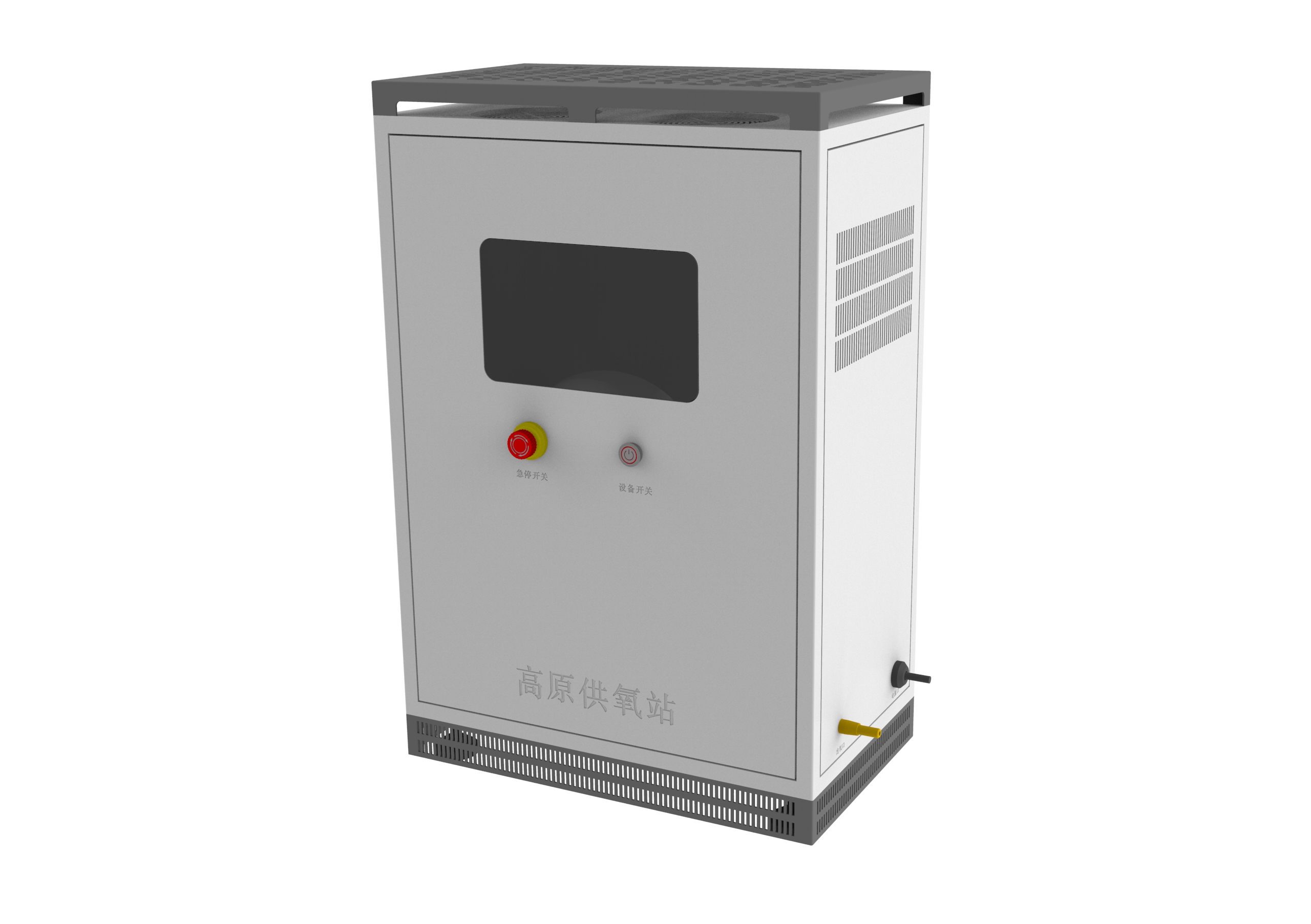

The Yunshi large membrane oxygen generator has a simple and elegant appearance and is made of high-strength aluminum

alloy profiles. Set up a stainless steel oxygen outlet to ensure the oxygen output is clean and hygienic. High-power design enables

multiple people to inhale oxygen. In combination with the intelligent management system, human-machine interaction is easy,

operation is simple, and it can be freely fixed anywhere with power supply.

The Yunshi large-scale membrane oxygen generator is designed specifically for high-altitude areas, mainly to prevent physical

discomfort caused by oxygen deficiency during the travel of high-altitude tourists.

Product features

◆  Simple operation. One-click oxygen generation, easy to use.

◆  Large flow rate. Large flow of oxygen output, multiple people inhale oxygen simultaneously.

◆  Fixed anywhere. It can be fixed at any place for oxygen inhalation, achieving fixed-point oxygen inhalation.

◆  Applicable to plateau areas. High-flow oxygen production ensures sufficient oxygen flow.

Parameter index

1) Dimensions: 460*460*600mm;

2) Rated power: 600W;

3) Oxygen concentration: (30±5) %;

4) Oxygen flow rate: 6m ³ /h;

5) Working voltage: 220V;

6) Weight: 40KG;

7) Working noise: ≤75dB;

8) Working humidity: < 90%RH;

9) Operating temperature: -40℃ to +45℃.
